Another pusher jet collection for you to try build upon is the Grumman F9F Panther. It is a 32" wingspan and equipped with 2200kv motor, will be in the speed of adrenaline, hopefully.
The rugged Panther was the first Navy jet committed to combat in Korea. It distinguished itself as a fighter-bomber and even shot down an advanced MiG15 fighter.
The Grumman F9F Panther was the manufacturer's first jet fighter and one of the United States Navy's first successful carrier-based jet fighters. A single-engined, straight-winged day fighter, it was armed with four 20 mm (0.79 in) cannons and could carry a wide assortment of air-to-ground munitions.
The Panther was used extensively by the U.S. Navy and Marine Corps in the Korean War. It was also the first jet aircraft used by the Blue Angels aerobatics demonstration team, from 1949 through late 1954. The aircraft was exported to Argentina and was the first jet used by the Argentine Naval Aviation. Source: Wikipedia
The Build Log
The process is pretty much simple as same as my previous build log and design. The design that have been simplified and yet retain as much as possible from the actual model. My aim is to have you to be able to build with ease and in no time get it flying.
Chip off depron and leave the tape to easy applied of hot glue.
Depron cut out and then lay with opp coloring tape.
I add in the bamboo skewer by pushing it through the fuselage. Make sure it is level on the top of the wing.
Finished assembly of all parts all together.
Wing side boom.
Simple cockpit secure to fuselage using fiber tape.

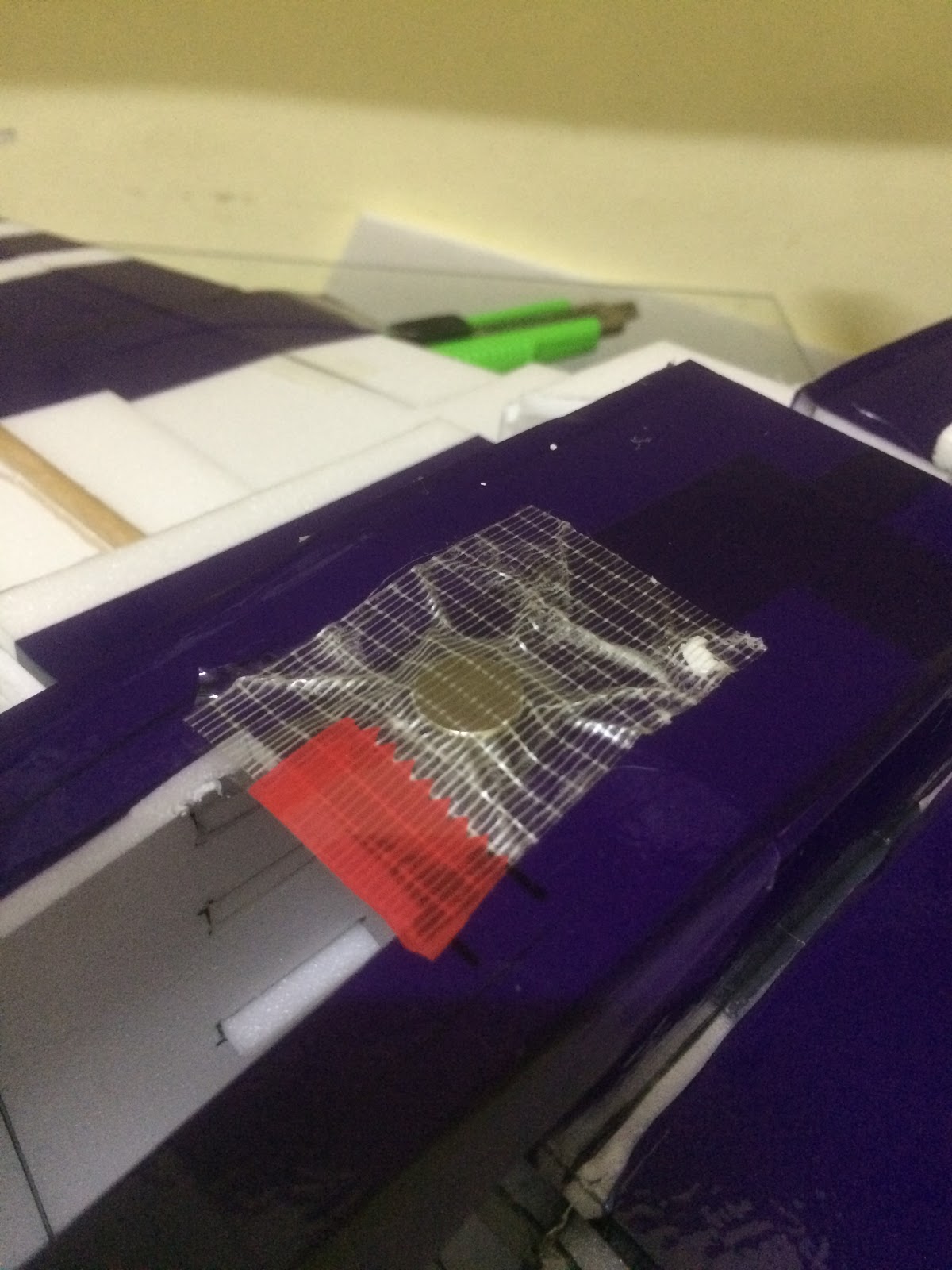

Magnet on fuselage.

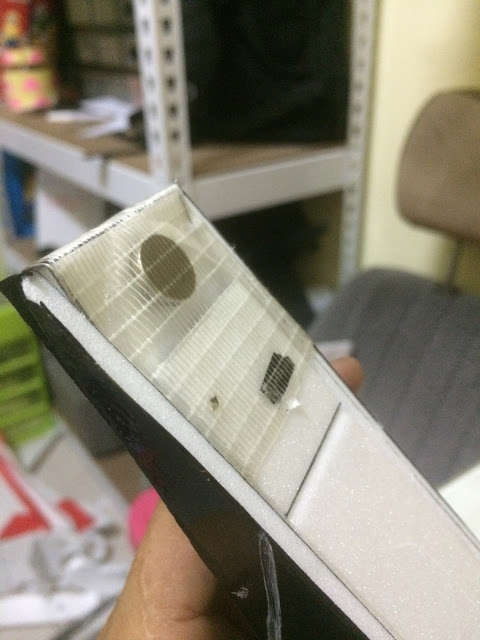

Cockpit magnet held on using fiber tape.
The hole on the fuselage are being cut out after finished assembly of the fuselage.
Air duct view from front.
Finished up tape wrapping.

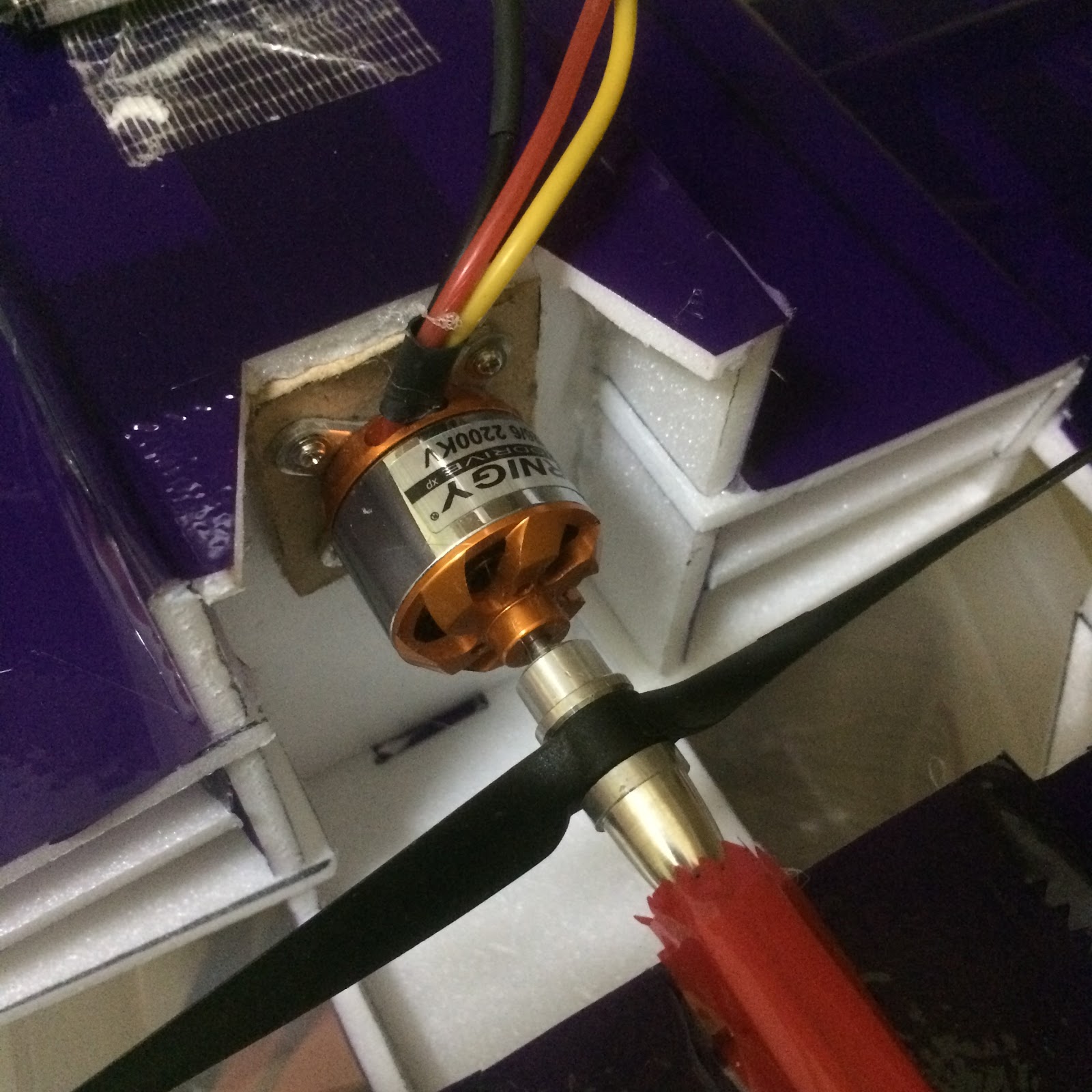

Top plank cut out to make way for easy motor assembly.
Elevator servo placement. I created a well/groove in the fin.
Aileron servo placement.
The cut out ot the wings section a bit large. I need to edit back the plan.
Specification
The model designed is geared towards speed and agility. For that below are the spec that I have come up with:
Wing span: 813mm / 32” inch Motor: 2200kv Turnigy Prop: 6x4 Lipo: 1800mah to 2200mah 11.1V ESC: 30A
The Plan Download
If you wish to build one for yourself, you can download the plan here with two variants, full page and tiled page plan. Both are in PDF format.
